systeme-aen

Modell

Messverfahren

Laserklasse

T max (Oberfläche)

Entfernungsbereich

Messgenauigkeit

Wiederholgenauigkeit

Messstrahl sichtbar

LMC-J-0040-X

Phasenvergleich

1050°C

≤ 30 m 2 bzw. ≤ 150 m 3

≤ 2 mm

≤ 0,5 mm

LMC-J-0050-X

Phasenvergleich

2/3R

1200°C/1450°C

≤ 30 m 2 bzw. ≤ 150 m 3

≤ 2 mm / ≤ 3 mm

≤ 0,5 mm

LMC-J-270

Laufzeit

300°C

≤ 70 m 2 bzw. ≤ 270 m 3

≤ 60 mm @ 40 kHz

≤ 25 mm

nein

LMC-J-310

Laufzeit

300°C

≤ 400 m 2 bzw. > 3000 m 3

≤ 20 mm @ 100 Hz ≤ 60 mm @ 2000 Hz

≤ 10 mm

nein

LMC-RH

Laufzeit

1700°C 1

2 … 10 m

≤ 10 mm @ 100 Hz ≤ 15 mm @ 1000 Hz

≤ 10 mm

nein

Model

Measuring method

Laser class

T max (surface)

Distance range

Measuring accuracy

Repeatability

Measuring beam visible

LMC-J-0040-X

Phase-shift

1050°C

≤ 30 m 2 resp. ≤ 150 m 3

≤ 2 mm

≤ 0,5 mm

yes

LMC-J-0050-X

Phase-shift

2/3R

1200°C/1450°C

≤ 30 m 2 resp. ≤ 150 m 3

≤ 2 mm / ≤ 3 mm

≤ 0,5 mm

yes

LMC-J-270

Time-of-flight

300°C

≤ 70 m 2 resp. ≤ 270 m 3

≤ 60 mm @ 40 kHz

≤ 25 mm

LMC-J-310

Time-of-flight

300°C

≤ 400 m 2 resp > 3000 m 3

≤ 20 mm @ 100 Hz ≤ 60 mm @ 2000 Hz

≤ 10 mm

LMC-RH

Time-of-flight

1700°C 1

2 … 10 m

≤ 10 mm @ 100 Hz ≤ 15 mm @ 1000 Hz

≤ 10 mm

Systems for distance & level measurements

• Wide range of applications • Precise measurement on a wide variety of surfaces • Reflectorless measurement possible

(More detailed information can be found in the data sheets in the DOWNLOADS section)

TECHNICAL DATA OVERVIEW

1 On steel, other surfaces on request 2 reflectorless 3 on reflector

• Low power consumption • Compact design • All standard industrial interfaces available • Dust and splash water protection according to IP 65 /66 /67

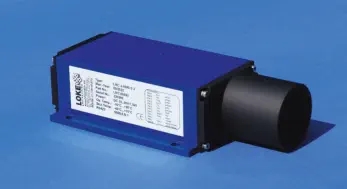

LMC-J-0040-X / 0050-X • Phase-shift measuring with amplitude modulation • Selective measurement by aperture angle 0.6 mrd • Easy alignment thanks to red laser light

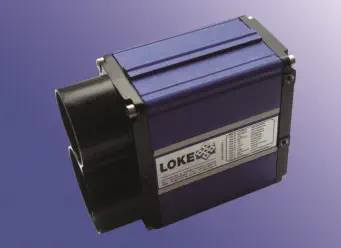

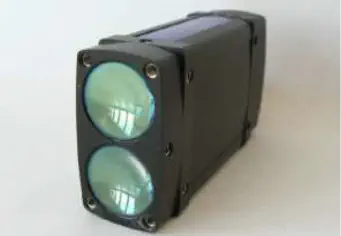

LMC-J-0270/ 0310 • Laser pulse time-of-flight measurement • For very long measuring distances • Applicable under harsh industrial conditions • IR laser with pilot laser for easy alignment • Special alignment device for long distances

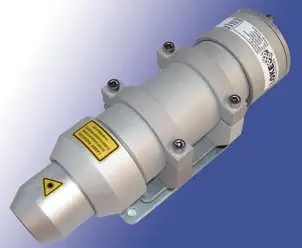

LMC-RH • Models for special requirements • For high demanding atmospheric conditions • Separate measuring head for heat applications • Technical details on request

Precise and robust: The opto-electronic distance measurement sensors of the LMC-J series have been developed for uncompromising industrial use, even under the most difficult conditions.
