Series
Method
Special feature
Special function
LMC-L
Laser Doppler
Velocity measurement
LMC-LB
Laser Doppler
B=Bragg cell
Velocity measurement
Direction detection; V = 0 m/min

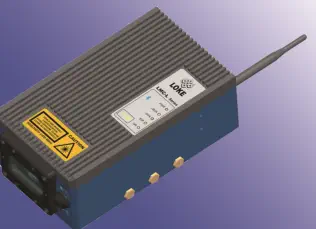

LMC-Lm/LBm
Laser Doppler
m=“mini“
Reduced dimensions; for shorter
measuring distances and critical
installation conditions
Special model

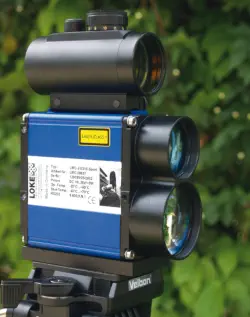

LMC-J-310 Sport
Time-of-flight
Measurement of speed, step frequency,
step length, acceleration
LOKE systems of the LMC-L series, which operate according to Laser Doppler Interferometry, are ideal
solutions for all measurements of velocities, lengths and profiles.
•
Measuring rate 25 kHz / 50 kHz
•
Accuracy < 0.05 %
•
Repeatability < 0.02 %
•
Material detection < 1 ms
•
Update time 0.04 ms / 0.02 ms
LMC L/LB
LMC Lm/LBm
LMC-J 310 Sport
The measuring systems of the LMC-L series
are suitable for ambient temperatures up
to max. 45 °C (with optional water cooling
up to 100 °C) as standard.
•
Measurement on hot surfaces up to 1300 °C
•
Working distances from 150 mm to 2000 mm
•
Measuring field depths 25 – 200 mm
•
Data interfaces:
RS 232 / RS 422 / Ethernet / Profibus /SSI / Pulse output / Analogue 4 ... 20 mA /
Devicenet / W-LAN / others on request
Systems for speed and length measurements
TECHNICAL DATA
OVERVIEW
(More detailed information can be found in the data sheets under DOWNLOADS)
